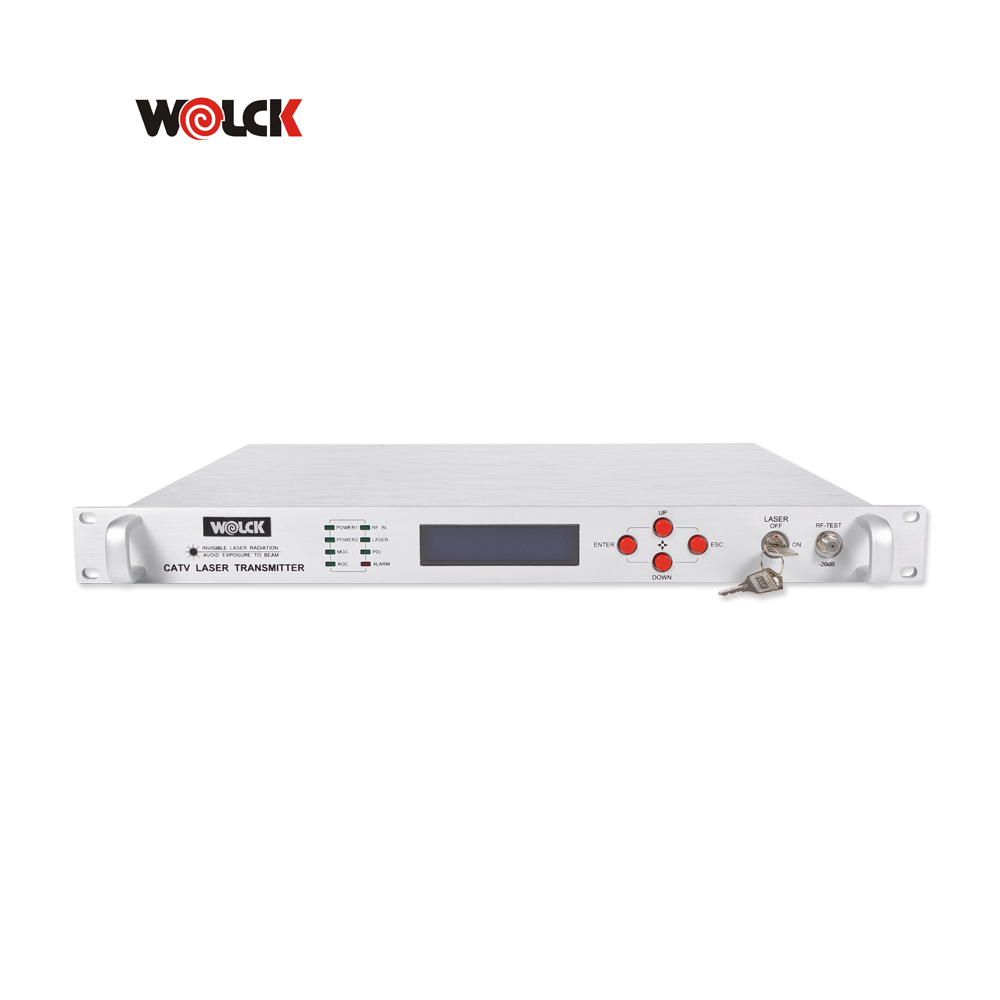

VTA-1510D indoor series optical transmitter is an externally modulated optical transmitter using a 1550nm DFB laser. The product uses a highly linear and low noise distributed feedback laser (DFB) and self-developed pre-distortion processing technology to ensure excellent performance indicators and high overall machine reliability; it has a working frequency bandwidth, large transmission capacity, and small non-linear distortion Features: automatic optical power control circuit, automatic laser temperature control circuit, laser protection circuit and laser slow start circuit can effectively extend the working life of the laser and ensure the stability of the output optical power when the laser is working for a long time.

The imported famous brand low-noise, high-power, high-reliability 1550nm DBF laser and LiNbO3 external modulator with pre-distortion processing function are selected. The excellent non-linear index provides strong technical support for CATV signals to achieve long-distance transmission. Amplifier cooperation can well solve the large area coverage of users of HFC networks.

The MCU microprocessor circuit, SBS suppression circuit and ALC automatic power control circuit in the product can be used to accurately monitor all the working state parameters of the laser. Each state parameter can be directly obtained by the LCM / VFD on the front panel or remotely through the RS232 serial interface. monitor.

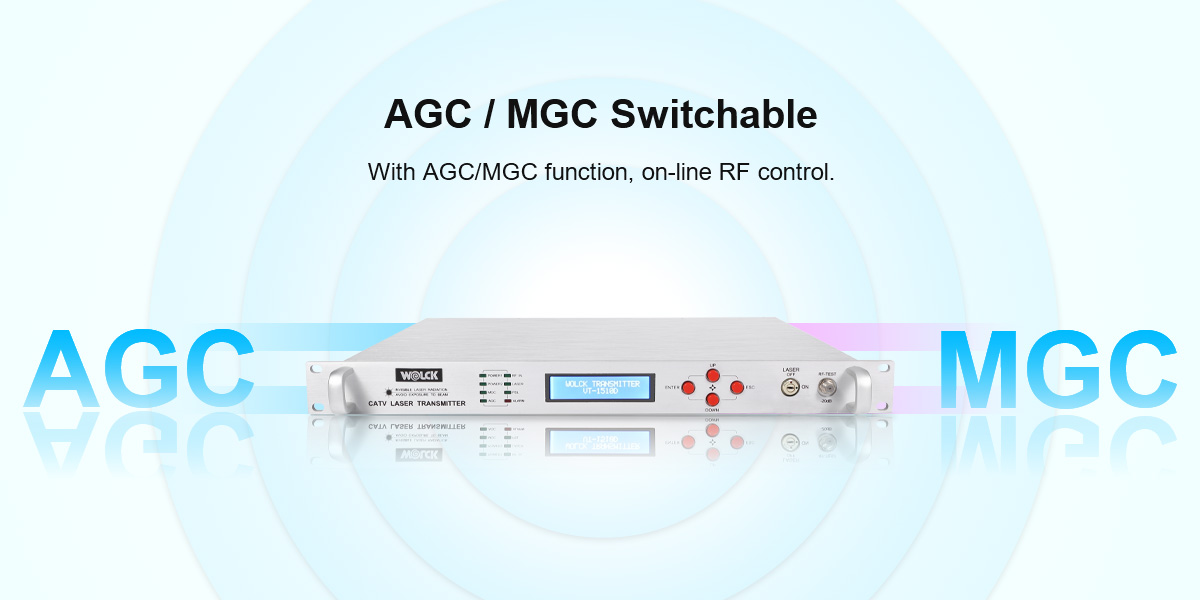

AGC condition

1. The default condition is AGC (the best condition)
2. AGC Range 75dBuV～85dBuV
3. AGC is automatically controlled by internal circuits
MGC Adjust
1. The MGC Adjust rotates counterclockwise ,RF OUT level increase
2. The MGC Aduust rotates clockwise, RF OUT level decreases
3. It is only useful if the MGC indicator light is on
NOTE: Users are not advised to adjust as they may cause image quality problems
RF ADJ
1. The RF ADJ rotates counterclockwise ,RF input level decreases
2. The RF ADJ rotates clockwise, RF input level increase
3. RF input level ensures at 75dBuV～85dBuV

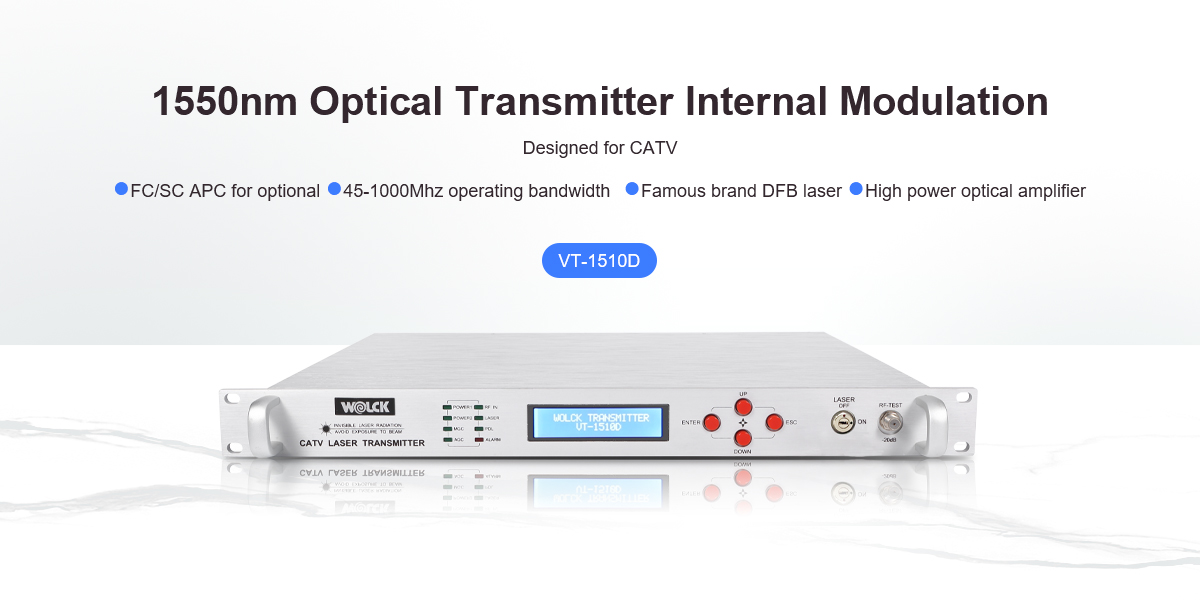

Product Features

• Frequency range: 45~862MHz.


• RF-input level: 75dBμV~85dBμV.

• Output wavelength: 1550nm±10mW

• Output optical power: (6, 8, 10mW)

• ATC/APC circuit makes function stable.

• MCU monitors the status, LCM/VFD displays the status, customers can test the parameters at any time.

• Rapid heating of a large area improves the reliability of the equipment.

• Both the RF input point and the power supply are equipped with lightning protection to ensure safety.

• 19-inch 1U design and installation.




Technical Parameters
