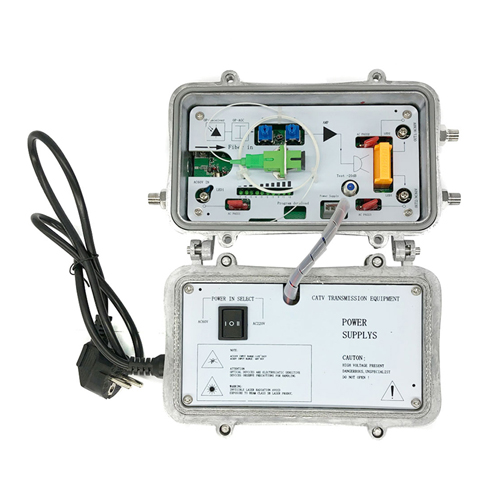

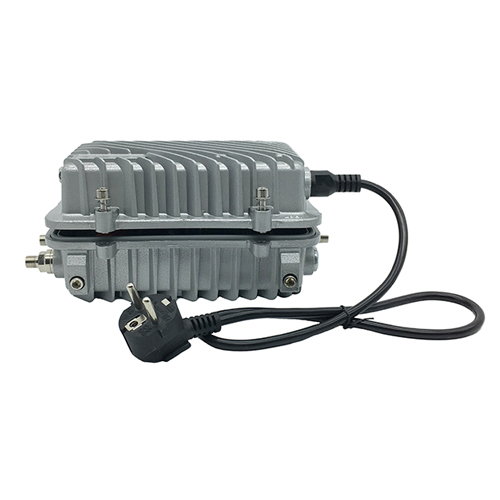

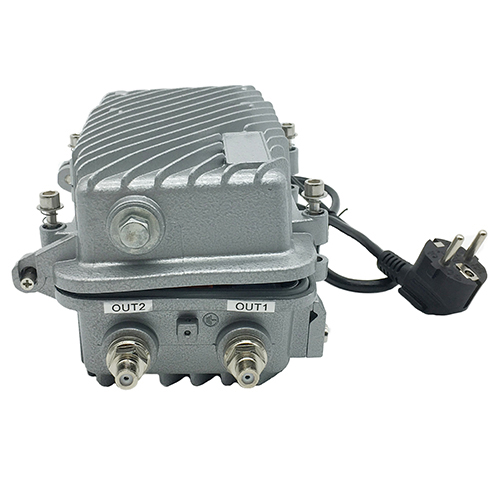

Optical Receiver VR-860AE
VR-860AE outdoor optical receiver is a new design utility-type CATV network product. It uses GaAs MMIC amplify module, to make sure the network design target and actual working ability, through reasonable circuit and design, select suitable parts to reduce the cost, modularize, collocate freely according to customers’ requirements.
It can transmit digital and analog signal at the same time, make the engineering commissioning become much more convenient. It is the optimization model for HTTP network system now.
Product Details

Product Description

VR-860AE outdoor optical receiver is a new design utility-type CATV network product. It uses GaAs MMIC amplify module, to make sure the network design target and actual working ability, through reasonable circuit and design, select suitable parts to reduce the cost, modularize, collocate freely according to customers’ requirements.

It can transmit digital and analog signal at the same time, make the engineering commissioning become much more convenient. It is the optimization model for HTTP network system now.


Product Features

    • Ten-level bar LED optical power indicates, more accurate.

    • Circuit optimization design, forestages SMT craft and backward stage module amplification.

    • Optical signal transmission becomes more fluid because of the classic circuit.

    • The gain of power-double output is high.

    • The distortion of power-double output is low.

    • AGC control. when the input optical power range from-7~+2dBm,output level, CTB and CSO stay the same.


Technical Parameters

ItemUnitVR-860AE
Optical parameter
Optical input rangedBm-7 ~+2
Optical return lossdB>45
Optical receiving wavelengthnm1290 ~1600
Optical connector type
FC/APC、SC/APC(Or specified by the user)
Optical fiber type
Single-mode
Link performance
C/NdB≥ 51-2dBm optical power input, output level 108dBμV, 8dB balanced
C/CTBdB≥ 65
C/CSOdB≥ 60
R F parameter
Frequency rangeMHz45~862
Flatness in banddB±0.75
Nominal output leveldBμV≥108
Max output leveldBμV≥114
Output return lossdB≥16
Output impedanceΩ75
General Feature
Supply voltageVAC60V or AC220V
Operating temperature-25 ~55
Storage temperature-40 ~70
Relative humidity%Max 80%No Condensation
Power consumptionW20
Dimensionmm230 (L)x 160(W)x105(H)
