Optical Receiver

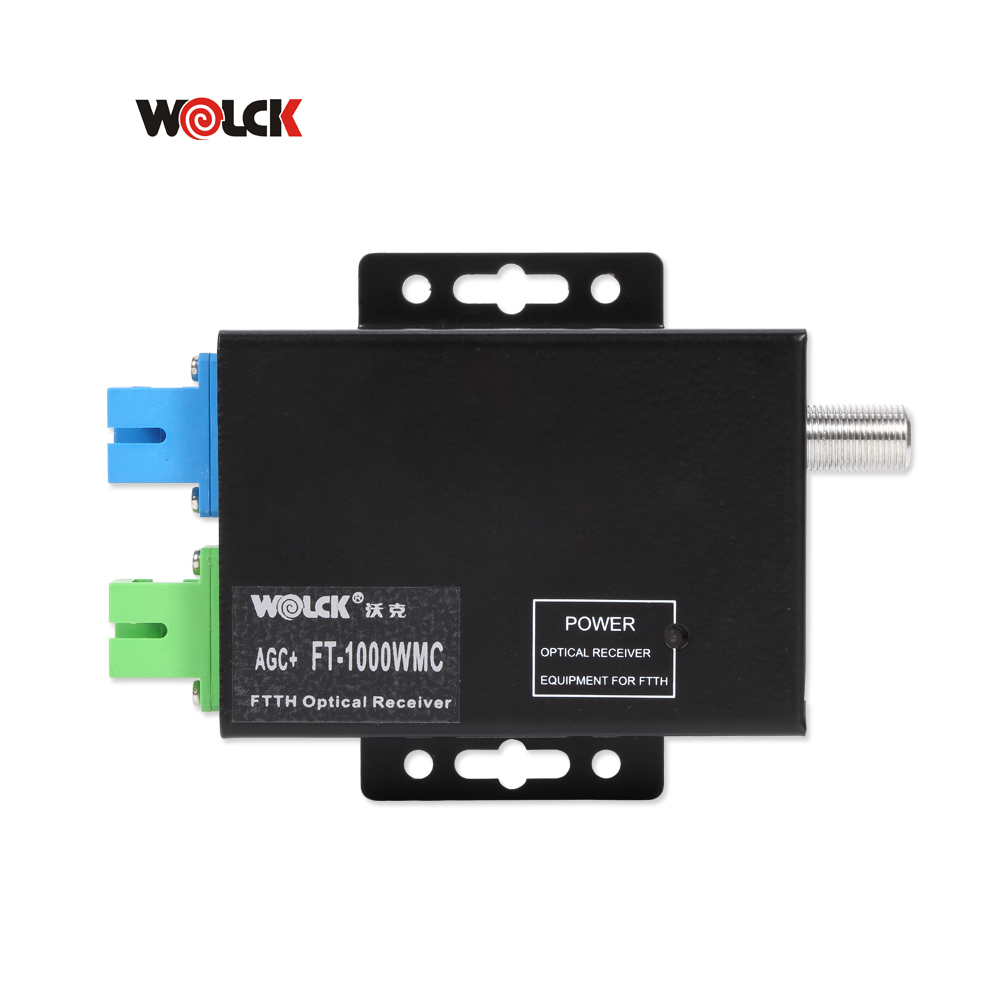

FTTH Optical Node with WDM
Fiber-to-the-home (FTTH) is the ultimate development goal of broadband access, and the optical receiver is the end product that caters to this goal. This machine adopts high isolation WDM technology to separate CATV and ONU signals.
Product Details


mini-ultra-low power receiver optical receiver is our company specifically to deal with FTTH - fiber to the home network structure and the introduction of another feature. The product shell is small, the internal circuit is compact and reasonable; excellent performance indicators, is the district or FTTH network of choice for products.

Product Features

  • Positive RF branch output, the impedance is 75Ω.

  • Using gallium arsenide amplification device.

  • 12V DC voltage supply.

  • Using wavelength division multiplexing photoelectric tube.

  • Compact and easy to install.

Technical Parameters

ItemUnitPerformance Parameter
Optical  characteristicinput wavelength(nm)1310,1490,1550
Output wavelength(nm)1310,1490
CATV operation wavelength(nm)1540~1560
channel separation(dB)≥40(1310/1490nm and 1550nm)
receive power range(dB)+3~-18
reflection loss(dB)≥55
fiber linker/LC/APC
RF characteristicBandwidth/flatnessMHz/dB47-1000/≤±1
output leveldBuv82/76/70±1/(-2~--9/-12/-15dBm)
output level adjustmentdB0~-18
reflection lossdB≥14(75Ω characteristic impedance)
RF output interface/Metric (one way output)
CNR/MERdB≥44/34(PAL-D 60CH,OMI3.8%,-9dBm)
