WK-3332 32 in 1 IP QAM Modulator
This 32 in 1 IP QAM modulator is a Mux-scrambling-modulating all-in-one device. It supports maximum 1024 IP input through the 3 GE ports and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.
Product Details

Product Description

This 32 in 1 IP QAM modulator is a Mux-scrambling-modulating all-in-one device. It supports maximum 1024 IP input through the 3 GE ports and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.


Product Features

  • 3 GE ports (max 1024 IP in):

Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out

Data port (located on front panel), max 128 IP in

  • Max 840Mbps for each GE input

  • Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing

  • Supports up to 256 PIDS remapping per channel

  • Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP

  • 32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B

  • Supports RS (204,188) encoding

  • Support Web-based Network management

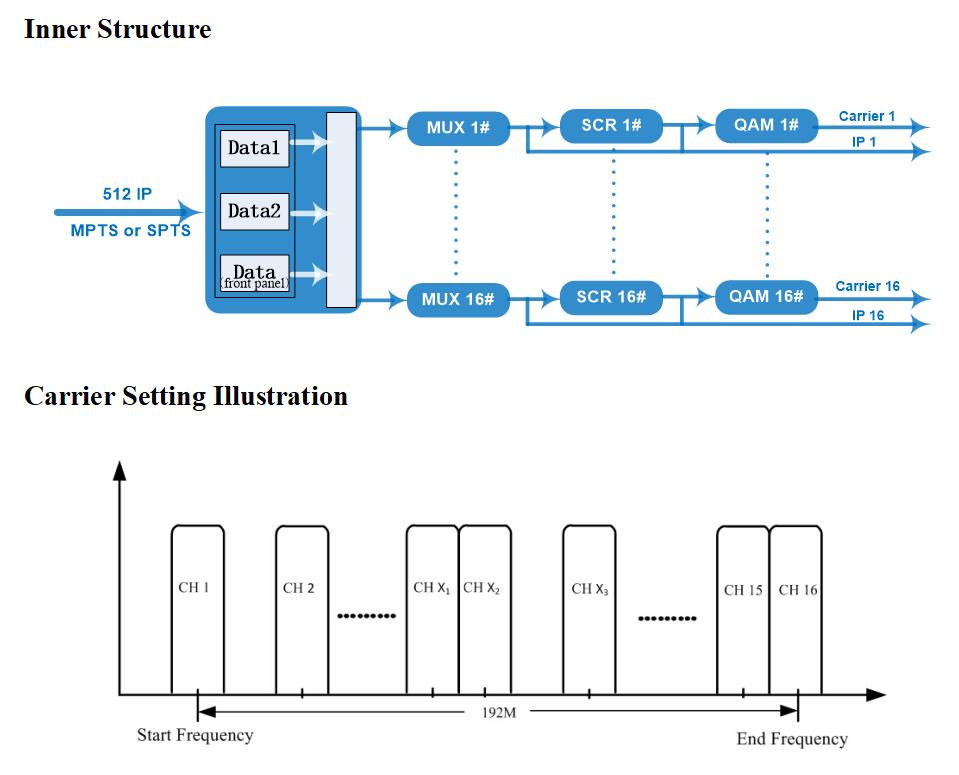

Inner Structure

uploads/image/20230414/1681460507.jpg

Technical Parameters

Input

Input

Max 1024 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input maximum 512 IP, while front-panel Data port can input maximum 128 IP

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each GE input

Mux

Input Channel

1024

Output Channel

32

Max PIDs

256 per channel

Functions

PID remapping(auto/manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Scrambling

Parameters

Max simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

Parameters

DVB-C Modulator Sectioon

J.83A

Constellation : 16/32/64/128/256QAM

Bandwidth :8M

J.83B

Constellation : 64QAM/ 256QAM

Bandwidth :6M

QAM Channel

32 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T J.83A/B(DVB-C)

Symbol Rate

5.0~7.0Msps, 1ksps stepping

Constellation

16, 32, 64 , 128, 256QAM

FEC

RS (204, 188)

RF Output

Interface

1 F typed output port for 32 carriers, 75Ω

RF Range

50~960MHz, 1kHz stepping

Output Level

-20dBm~+10dBm(87~117dbµV), 0.1dB stepping

MER

≥ 40dB

TS output

32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports

System

Network management software (NMS) supporting

General

Demission

420mm×440mm×44.5mm (WxLxH)

Temperature

0~45(operation), -20~80(storage)

Power Supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
