WK-3536S Encoder Modulator
WK-3536S is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port.
Product Details

Product Description

WK-3536S is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port. It also supports DVB-C RF out with 12 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers, or ISDB-T RF out with 6/16 non-adjacent carriers, and supports 12/8/6/16 MPTS as mirror of 12/8/6/16 carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…



Product Features

  • 8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding

  • 1 ASI input for re-mux

  • 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in WK-3536S and play back the content in an easy way; file system FAT 32. )

  • 128 IP input over UDP and RTP via GE port

  • Each carrier out channel process maximum 32 IP from the GE port(UDP&RTP protocol)

  • MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment

  • Support 12 groups multiplexing/DVB-C modulating

  • Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional

  • Support 6 (or 16) groups multiplexing/ISDB-T modulating---Optional

  • Support 1 ASI out as mirror of one of RF output carriers---Optional

  • Support 12 MPTS IP output over UDP, RTP/RTSP –DVB-C RF out

  • Support 8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RF out

  • Support 6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RF out

  • Support LOGO, Caption and QR code insertion(Language Supported: 中文, English, العربية, русский, اردو, for more languages please consult us…)

  • Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting

  • Control via web management, and easy updates via web

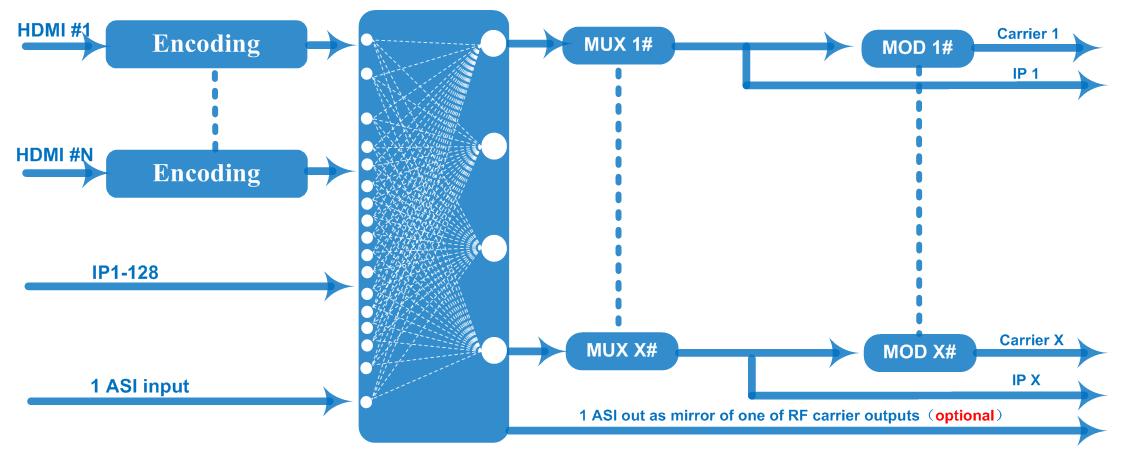

Inner Structure

uploads/image/20230414/1681460627.jpg


Technical Parameters

Input

8/16/24 HDMI inputs for option

1 ASI in for re-mux

1 USB Player input for re-mux

128 IP input over UDP and RTP, GE port, RJ45—DVB-C RF out

128 IP input over UDP and RTP, GE port, RJ45—DVB-T/ATSC RF out

128 IP input over UDP and RTP, GE port, RJ45—ISDBT RF out

Video

Resolution

Input

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,



Output

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720×576_25P,720×480_30P,


Encoding

MPEG-4 AVC/H.264


Bit-rate

1Mbps~13Mbps each channel


Rate Control

CBR/VBR


GOP Structure

IP…P (P Frame adjustment, without B Frame )

Audio

Encoding

MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through


Sampling rate

48KHz


Resolution

24-bit


Audio Gain

0-255 Adjustable


MPEG-1 Layer 2 Bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps


LC-AAC Bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps


HE-AAC Bit-rate

48/56/64/80/96/112/128 kbps

Multiplexing

Maximum PID

Remapping

255 input per channel


Function

PID remapping ( automatically or manually)



Accurate PCR adjusting



Generate PSI/ SI table automatically

Modulation

DVB-C

QAM Channel

12 non-adjacent carriers output (maximum bandwidth 192MHz)



Standard

EN300 429/ITU-T J.83A/B



MER

≥40db



RF frequency

50~960MHz, 1KHz step



RF output level

-20~+3dbm, 0.1db step



Symbol Rate

5.0Msps~7.0Msps, 1ksps stepping




J.83A

J.83B



Constellation

16/32/64/128/256QAM

64/256 QAM



Bandwidth

8M

6M


DVB-T

Standard

EN300744



FFT mode

2K,4K, 8K



Bandwidth

6M, 7M, 8M



Constellation

QPSK, 16QAM, 64QAM



Guard Interval

1/4, 1/8, 1/16, 1/32



FEC

1/2, 2/3, 3/4, 5/6, 7/8



MER

≥42 dB



RF frequency

50~960MHz, 1KHz step



RF out

8 non-adjacent carriers output (maximum bandwidth 192MHz)



RF output level

-20~ +3dBm, 0.1db step


ATSC

Standard

ATSC A/53



Bandwidth

6M



Constellation

8VSB



FEC

RS(208 188)+Trellis



MER

≥40dB



ACL

-55 dBc



RF frequency

50~960MHz, 1KHz step



RF out

8 non-adjacent carriers output (maximum bandwidth 192MHz)



RF output level

-20~+3dbm (for all carriers), 0.5db stepping


ISDB-T

Standard

ARIB STD-B31



Bandwidth

6M



Constellation

QPSK, 16QAM, 64QAM



Guard Interval

1/32, 1/16, 1/8, 1/4



Transmission Mode

2K, 4K, 8K



Code rate

1/2, 2/3, 3/4, 5/6, 7/8



MER

≥40dB



RF frequency

50~960MHz, 1KHz step



RF out

6 (or 16) non-adjacent carriers output (maximum bandwidth 192MHz)



RF output level

-20dBm~+3dBm, 0.1dB stepping

Stream output

1 ASI output as mirror of one of RF output carriers(Optional)

12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers,

8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional)

6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional)

16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers(Optional)

1*1000M Base-T Ethernet interface, GE port

System function

Network management (WEB)


Chinese and English language


Ethernet software upgrade

Miscellaneous

Dimension (W×L×H)

482mm×328mm×44mm


Environment

0~45℃(work)；-20~80℃（Storage）


Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
