Product Description
This Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
Product Features
Support 16 FTA DVB- S/S2 (DVB-C/T/T2 /ISDB-T/ATSC optional )input, 2 ASI input
Support BISS descrambling
Support DisEqc function
16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
2 independent GE output port, GE1 + GE2---MPTS
Support PID filtering, re-mapping (Only for SPTS output)
Support “Null PKT Filter” function (Only for MPTS output)
Support Web operation

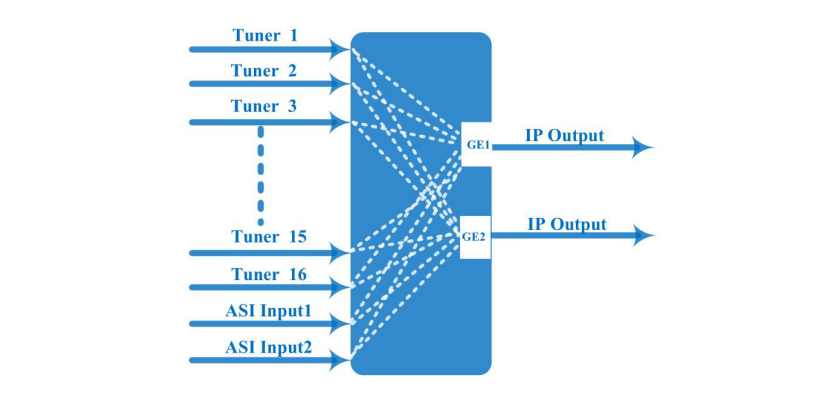

Inner Structure
Technical Parameters
Input | Optional 1:16 tuners input +2 ASI input---SPTS output Optional 2:14 tuners input +2 ASI input --- MPTS output Optional 3:16 tuners input --- MPTS output | |||
Tuner Section
| DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | |
Frequency In | 30 MHz~1000 MHz | |||
Constellation | 16/32/64/128/256 QAM | |||
DVB-T/T2 | Frequency In | 30MHz ~999.999 MHz | ||
Bandwidth | 6/7/8 M bandwidth | |||
DVB-S/S2 | Input Frequency | 950-2150MHz | ||
Symbol rate | DVB-S: QPSK 2~45Mbauds; DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds | |||
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
Constellation | QPSK, 8PSK | |||
ISDB-T | Input Frequency | 30-1000MHz | ||
ATSC | Input Frequency | 54MHz~858MHz | ||
Bandwidth | 6M bandwidth | |||
Output | 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 are different), Unicast and Multicast | |||
16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | ||||
BISS Descrambling | Mode 1, Mode E (Up to 850Mbps) (descramble individual program) | |||
Miscellaneous | Dimension | 482mm×410mm×44mm (W×L×H) | ||
Approx weight | 3.6kg | |||
Environment | 0~45℃(work)；-20~80℃（Storage） | |||
Power requirements | 100~240VAC, 50/60Hz | |||
Power consumption | 20W | |||
