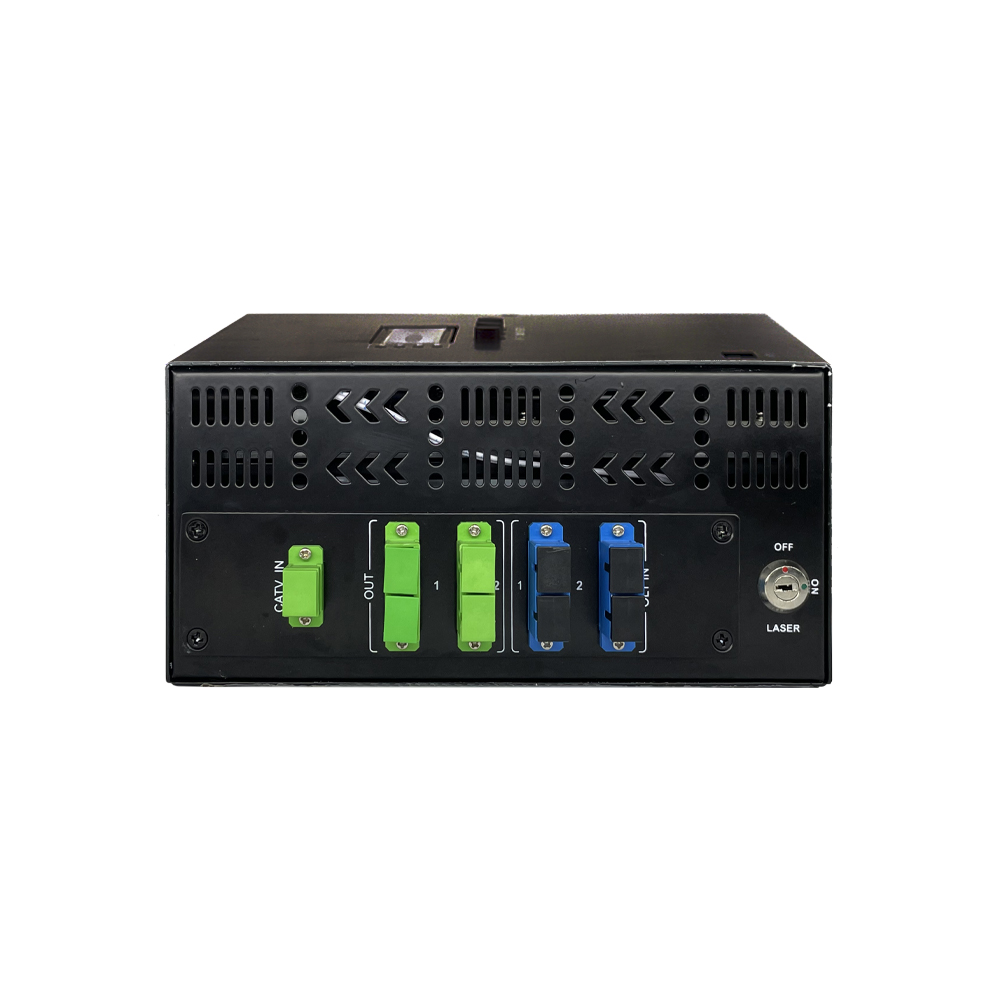

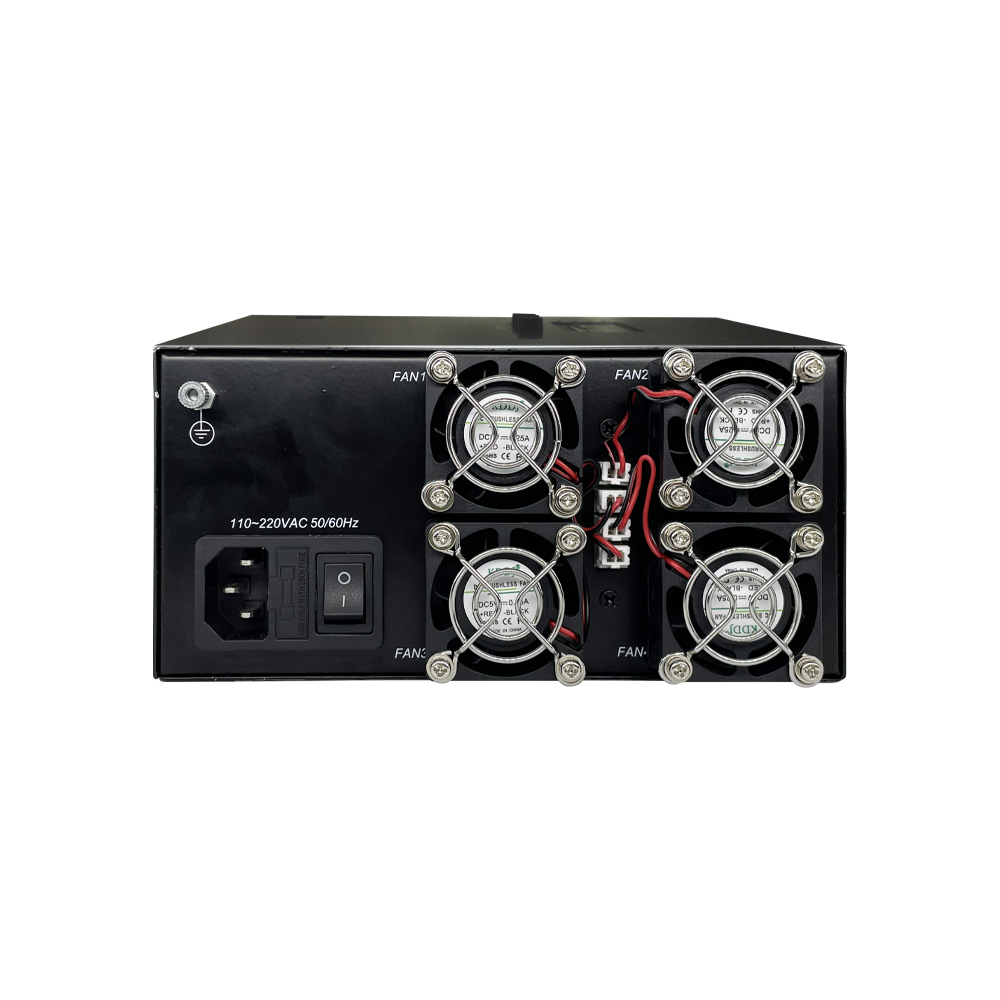

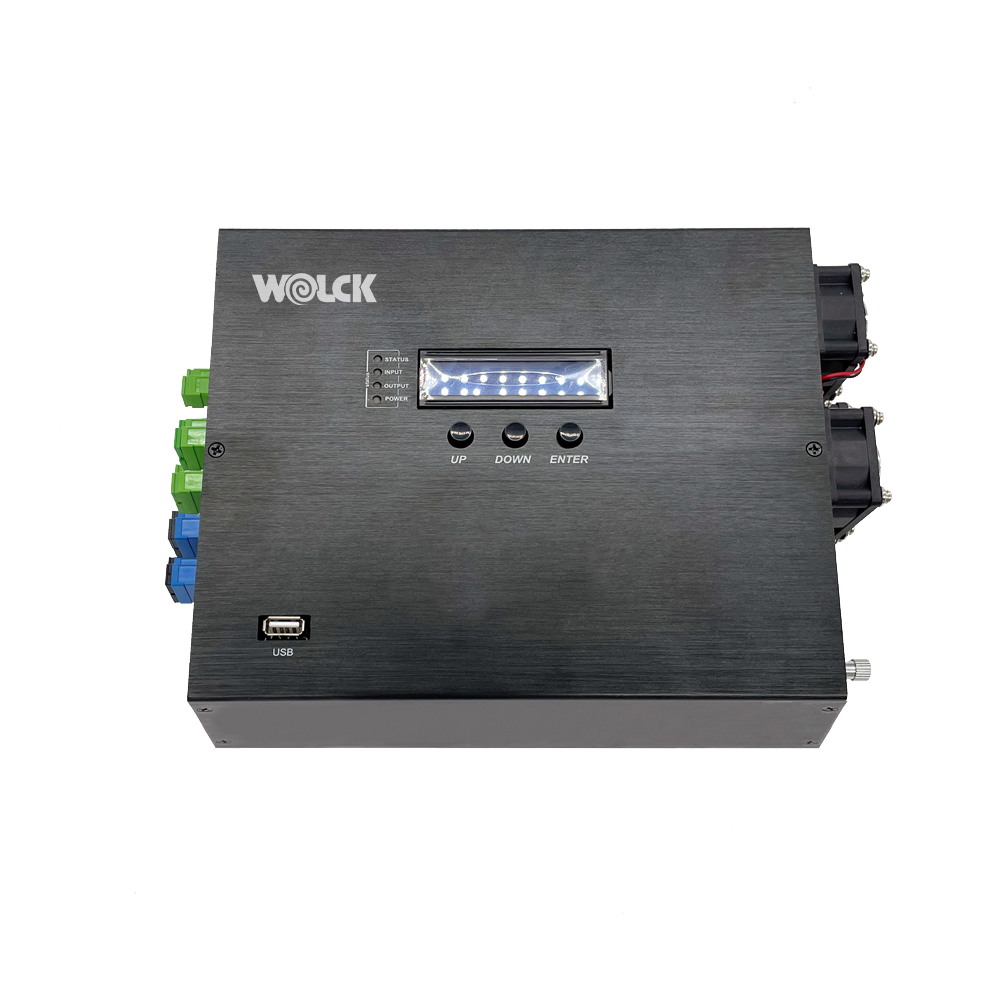

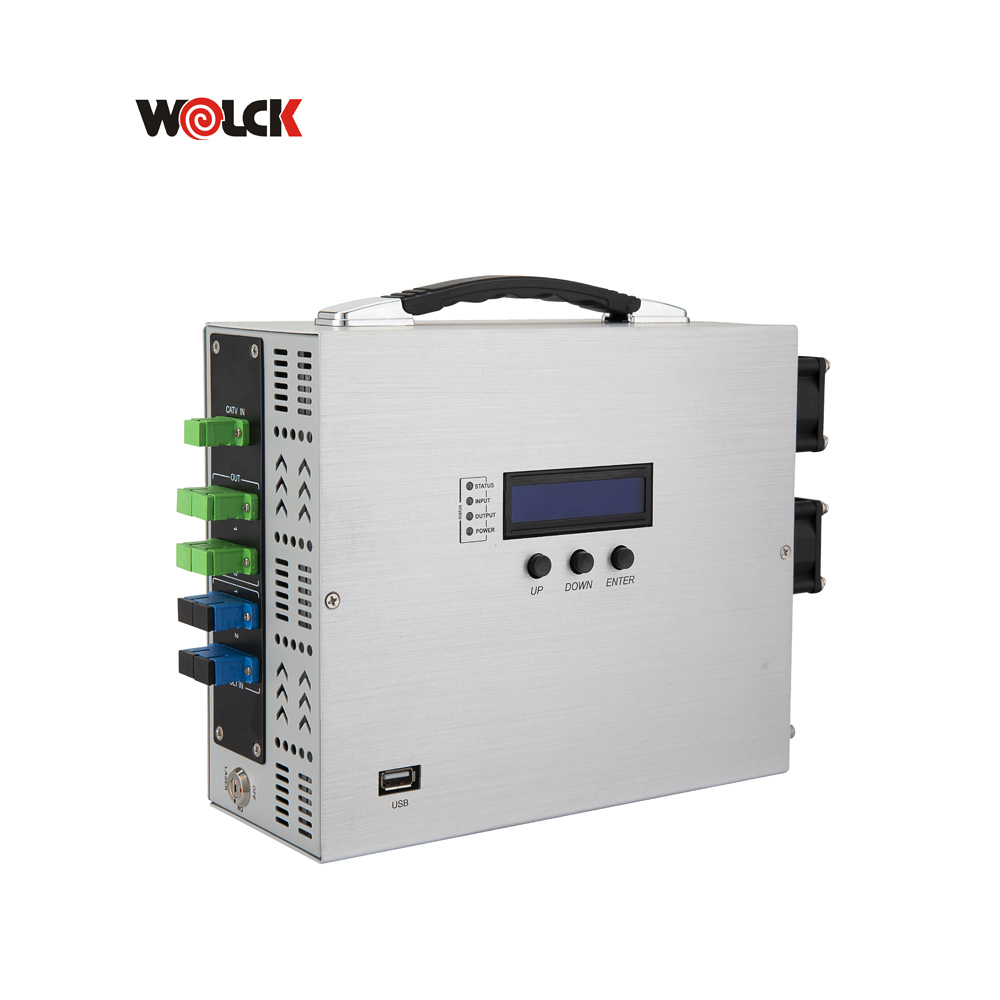

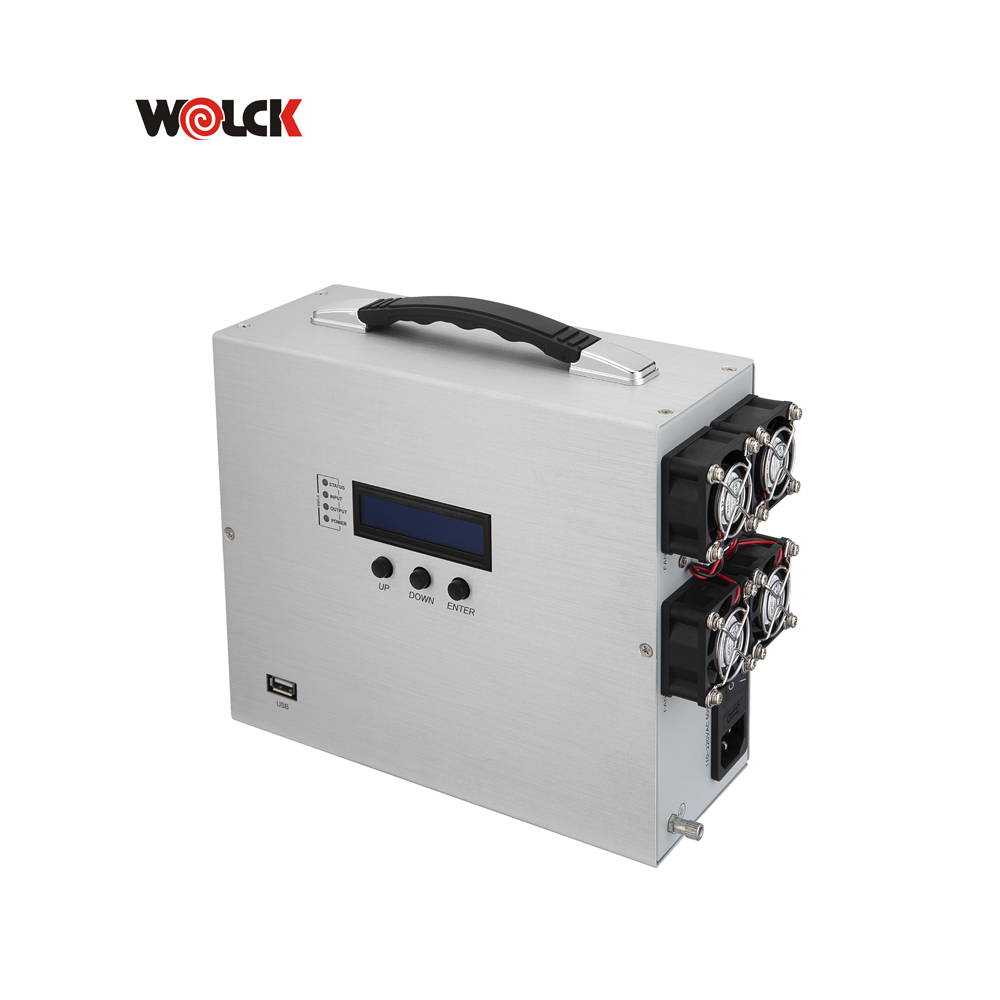

1550nm MiNi EDFA
CATV erbium-doped fiber amplifier mini device which designed according to the communication level standard, It is mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over long distance. technology design pays attention to the product’s cost, chose to build a large and medium-sized 1550nm catv optical fiber transmission network economical transmission device.
Product Details

Product Features

* Output adjustable by buttons in the front panel or , the range is 0～5dBm.

* Maintenance function of one-time downward attenuation of 6dBm by buttons in the front panel, to facilitate the optical fiber hot-plug operation without turn off The device.

* Multi-ports output, can built in 1310/1490/1550WDM.

* USB port facilitates device upgrade.

* The laser turn on/off by locks keys in the front panel.

* Adopts JDSU or Oclaro Pump laser.

* Led displays the working condition of the machine.

* Dual power hot-plug power supply for choice, 110V,220V AC.

Technical Parameter

Items

Parameter

Output (dBm)

31

32

33

34

35

36

37

38

39

Output (mW)

1250

1600

2000

2500

3200

4000

5000

6400

8000

Input (dBm)

-3 ~ +10

Range or output adjustment (dBm)

5

Wavelength (nm)

1540 ~ 1560

Output stability (dB)

<±0.3

Optical return loss (dB)

≧45

Fiber connector

FC/APC, SC/APC, SC/UPC, LC/APC, LC/UPC

Noise figure (dB)

<6.0 (input 0dBm)

Connector type

RJ45, USB

Power consumption (W)

≤80

Voltage (V)

110VAC, 220VAC

Working temp (℃)

0 ~ 55

Size (mm)

260(L)x186(W)x89(H)

NW (Kg)

3.8
