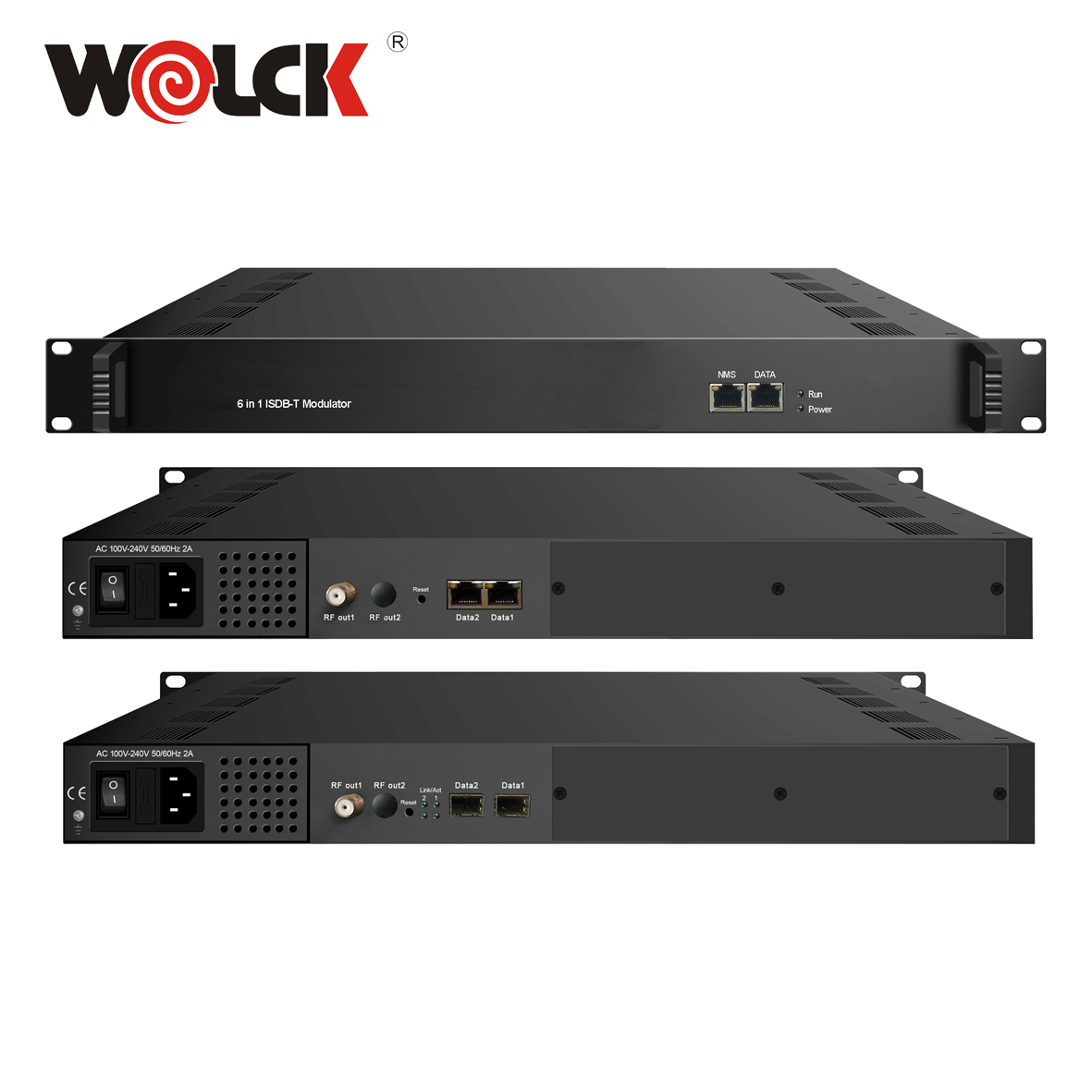

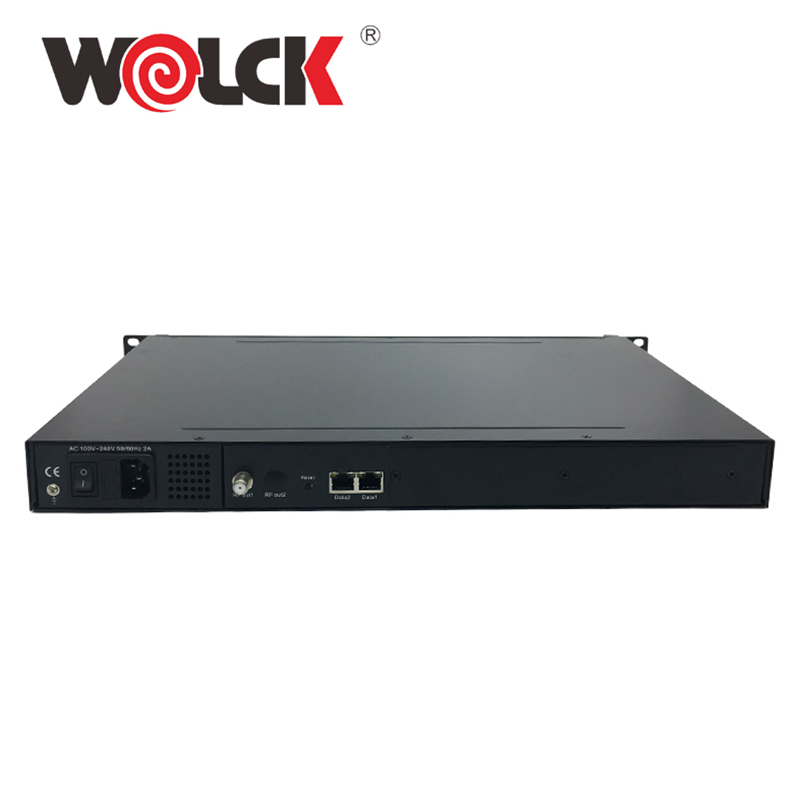

产品特点
3个GE接口用于数据输入输出
每个 GE 输入最大 840Mbps
支持精确的PCR调整
支持CA过滤、PID重映射和PSI/SI编辑
每个通道最多支持 256 个 PIDS 重映射
通过 UDP/RTP/RTSP 上的 Data1 和 Data2 支持 8 IP 输出--版本 I
通过UDP/RTP/RTSP--Version II 通过Data1 & Data2 支持16 IP 输出
8（或 16）个非相邻载波输出，符合 ISDB-Tb (ARIB STD-B31)
支持基于Web的网络管理

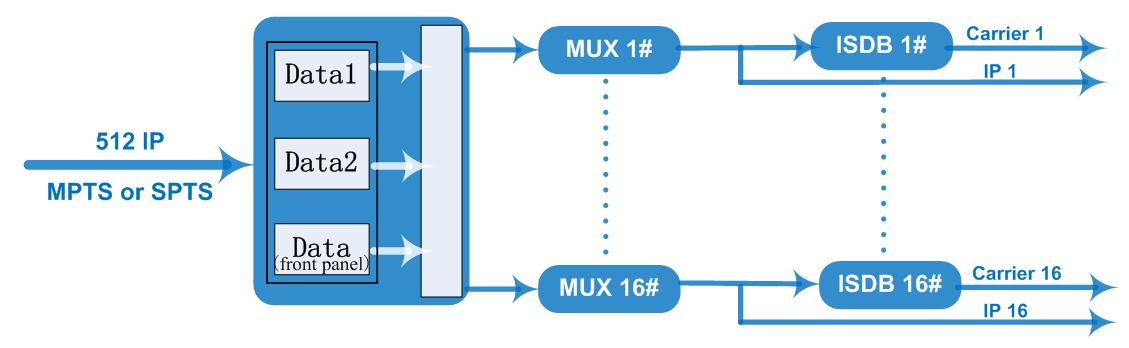

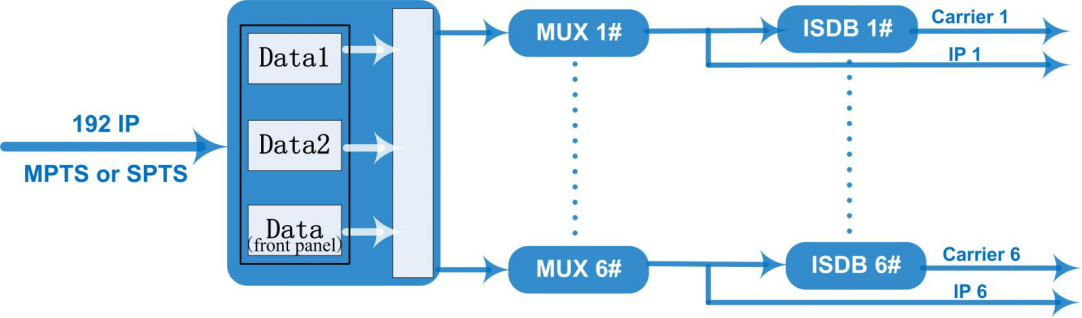

产品原理图
技术参数
Input |
Input | Max 512 IP input through 3 (front-panel Data port, Data1 and Data2) 100/1000M Ethernet Port(SFP interface optional). Each Data1 or Data 2 port can input max 512 IP, while front-panel Data port can input max 512 IP- 16 ISDB-T Carriers out version |
Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | |
Transmission Rate | Max 840Mbps for each GE input | |
Mux | Input Channel | 512 |
Output Channel | 16 | |
Max PIDs | 256 per channel | |
Functions | PID remapping (auto/manually optional) | |
PCR accurate adjusting | ||
PSI/SI table automatically generating | ||
Modulation Parameters | Standard | ARIB STD-B31 |
Bandwidth | 6M | |
Constellation | QPSK, 16QAM, 64QAM | |
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |
Transmission Mode | 2K, 4K, 8K | |
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |
MER | ≥40dB | |
RF frequency | 50~960MHz, 1KHz step | |
RF output level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping | |
RF Output | Interface | 1 F typed output port, 75Ω impedance |
ACLR | -50 dBc | |
TS output | 16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports | |
System | Network management software (NMS) supporting | |
General | Demission | 480mm×327mm×44.5mm (WxLxH) |
Weight | 5.5kg | |
Temperature | 0~45℃(operation), -20~80℃(storage) | |
Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%,50/60Hz | |
Consumption | 15.4W | |
