产品特点
24 或 16 FTA 调谐器（DVB-C/-T/-T2/-S/-S2/-S2X、ATSC、ISDB-T 可选）+ 1 ASI 输入+256 IP 输入，基于 UDP 和 RTP 协议
8*DVB-T射频输出
8 IP (MPTS) 通过 UDP 和 RTP/RTSP 输出，作为运营商的镜像
支持8组BISS解扰（仅限NDS3394T B版）+8组复用+8组DVB-T调制
支持精确的PCR调整、PSI/SI编辑插入、A/V PID滤波
支持网页管理，通过网页更新
冗余电源（可选）

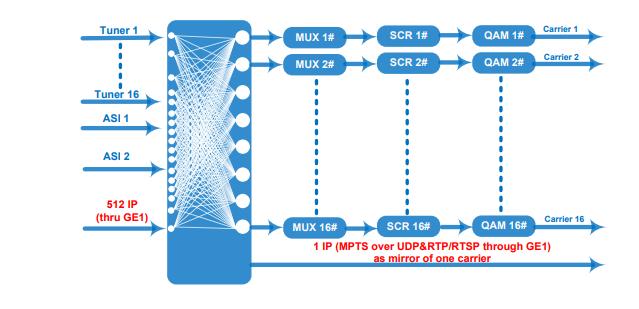

产品原理图
技术参数
Input | 24 or 16 FTA Tuner (DVB-C/-T/-T2/-S/-S2/-S2X, ATSC, ISDB-T Optional) + 1 ASI input+256 IP input over UDP and RTP protocol (16 FTA Tuner input for option as per order) | |||||
256 IP (GE1&GE2) input over UDP and RTP protocol | ||||||
1 ASI input, BNC interface | ||||||
Tuner Section | Option 1 | DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | ||
Frequency In | 60~890MHz | |||||
Constellation | 16/32/64/128/256 QAM | |||||
DVB-T/T2 | Frequency In | 60~890MHz | ||||
Bandwidth | 6/7/8 M bandwidth | |||||
ISDB-T | Frequency In | 60~890MHz | ||||
Option 2 | DVB-S | Frequency In | 950~2150MHz | |||
Symbol rate | 0.5~45Msps | |||||
Signal Strength | - 65~-25dBm | |||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||
Constellation | QPSK | |||||
Max input bitrate | ≤120 Mbps | |||||
DVB-S2 | Frequency In | 950~2150MHz | ||||
Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps 32APSK: 0.5~40Msps; | |||||
FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | |||||
Constellation | QPSK, 8PSK, 16APSK, 32APSK | |||||
Max input bitrate | ≤120 Mbps | |||||
DVB-S2X | Frequency In | 950-2150MHz | ||||
Symbol rate | QPSK/8PSK /16APSK: 0.5~45 Msps 8APSK/32APSK: 0.5~40Msps | |||||
FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 | |||||
Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK | |||||
Max input bitrate | ≤120 Mbps | |||||
Option 3 | ATSC | Frequency In | 30~1000MHz | |||
Bandwidth | 6M | |||||
Constellation | 8VSB | |||||
BISS Descrambling | Mode 1, Mode E (descramble individual program) (only for NDS3394T version B) | |||||
Multiplexing | Maximum PID Remapping | 256 output per channel | ||||
Function | PID remapping (automatically or manually) | |||||
A/V PID filtering (not for NDS3394T version B) | ||||||
Accurate PCR adjusting | ||||||
Generate PSI/SI table automatically | ||||||
Modulation | Standard | EN300 744 | ||||
FFT | 2K 4K 8K | |||||
Bandwidth | 6M, 7M, 8M | |||||
Constellation | QPSK, 16QAM, 64QAM | |||||
Guard interval | 1/4, 1/8, 1/16, 1/32 | |||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||
MER | ≥42 dB | |||||
RF out | 8 non-adjacent carrier output | |||||
RF frequency | 50~960MHz | |||||
RF output level | -20~+10dBm, 0.1dB step | |||||
Stream out | 8 DVB-T RF output (F type interface) | |||||
8 IP (MPTS) output over UDP and RTP/RTSP (GE1 only), as mirror of carriers 2 ASI output, one as mirror | ||||||
System | Network management (WEB) | |||||
Chinese and English language | ||||||
Ethernet software upgrade | ||||||
General | Dimension(W*D*H) | 482mm×230mm×44mm | ||||
Temperature | 0~45℃(Operation) ; -20~80℃(Storage) | |||||
Power | AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ | |||||
