产品概述

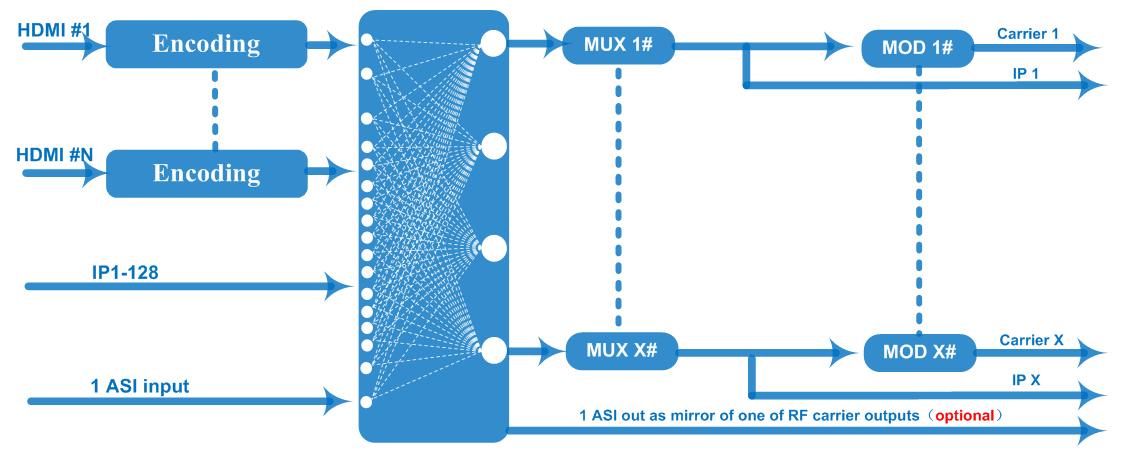

3536S是一款集编码（解调）、复用、调制于一体的专业高集成度器件。 它支持 8/16/24 路 HDMI（或 HDMI 加 DVB-S2/S2X/C/T/T2/ISDB-T 调谐器混合输入）输入、1 路 ASI 输入、1 路 USB 播放器输入和 128 路通过 GE 端口的 IP 输入， 并通过多个DVB-C（或DVB-T/ATSC/ISDB-T可选）载波通道输出。 它还支持通过 GE 端口作为载波镜像的 MPTS 输出和作为其中一个载波镜像的 1 ASI 输出。 这种功能齐全的设备使其成为小型 CATV 前端系统的理想选择，是酒店电视系统、体育酒吧、医院、公寓等娱乐系统的明智选择…
产品特点
8/16/24 HDMI 输入（或 HDMI 加 DVB-S2/S2X/C/T/T2/ISDB-T 调谐器混合输入），MPEG-4 AVC/H.264 视频编码
1 个用于重新复用的 ASI 输入
1个USB播放器（在NDS3536S中插入带有“xxx.ts”视频的U盘，轻松播放内容；文件系统FAT 32）
128 IP 通过 UDP 和 RTP 通过 GE 端口输入
每个carrier out channel最多处理32个来自GE口的IP（UDP&RTP协议）
MPEG1 Layer II、LC-AAC 和 HE-AAC 音频编码、AC3 直通和音频增益调整
支持 12ch DVB-C RF 输出（8ch/16ch DVB-T、8ch ATSC 或 6ch/16ch ISDB-T 输出可选，根据订单）
支持1个ASI输出作为其中一个RF输出载波的镜像---可选
支持通过UDP、RTP/RTSP的MPTS IP输出
支持LOGO、Caption、QR码插入（支持语言：中文、English、العربية、ไทย、हिन्दी、русский、اردو，更多语言请咨询我们……）
支持PID重映射/精确PCR调节/PSI/SI编辑插入
通过网页管理进行控制，通过网页轻松更新
产品应用
技术参数
Input | 8/16/24 HDMI inputs for option 1 ASI in for re-mux 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45—DVB-C RF out 128 IP input over UDP and RTP, GE port, RJ45—DVB-T/ATSC RF out 128 IP input over UDP and RTP, GE port, RJ45—ISDBT RF out | ||||
Video | Resolution | Input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | ||
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, | ||||
Encoding | MPEG-4 AVC/H.264 | ||||
Bit-rate | 1Mbps~13Mbps each channel | ||||
Rate Control | CBR/VBR | ||||
GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||
Sampling rate | 48KHz | ||||
Resolution | 24-bit | ||||
Audio Gain | 0-255 Adjustable | ||||
MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||
LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||
HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | ||||
Multiplexing | Maximum PID Remapping | 255 input per channel | |||
Function | PID remapping ( automatically or manually) | ||||
Accurate PCR adjusting | |||||
Generate PSI/ SI table automatically | |||||
Modulation | DVB-C | QAM Channel | 12 non-adjacent carriers output (maximum bandwidth 192MHz) | ||
Standard | EN300 429/ITU-T J.83A/B | ||||
MER | ≥40db | ||||
RF frequency | 50~960MHz, 1KHz step | ||||
RF output level | -20~+3dbm, 0.1db step | ||||
Symbol Rate | 5.0Msps~7.0Msps, 1ksps stepping | ||||
J.83A | J.83B | ||||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | |||
Bandwidth | 8M | 6M | |||
DVB-T | Standard | EN300744 | |||
FFT mode | 2K,4K, 8K | ||||
Bandwidth | 6M, 7M, 8M | ||||
Constellation | QPSK, 16QAM, 64QAM | ||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
MER | ≥42 dB | ||||
RF frequency | 50~960MHz, 1KHz step | ||||
RF out | 8 non-adjacent carriers output (maximum bandwidth 192MHz) | ||||
RF output level | -20~ +3dBm, 0.1db step | ||||
ATSC | Standard | ATSC A/53 | |||
Bandwidth | 6M | ||||
Constellation | 8VSB | ||||
FEC | RS(208 188)+Trellis | ||||
MER | ≥40dB | ||||
ACL | -55 dBc | ||||
RF frequency | 50~960MHz, 1KHz step | ||||
RF out | 8 non-adjacent carriers output (maximum bandwidth 192MHz) | ||||
RF output level | -20~+3dbm (for all carriers), 0.5db stepping | ||||
ISDB-T | Standard | ARIB STD-B31 | |||
Bandwidth | 6M | ||||
Constellation | QPSK, 16QAM, 64QAM | ||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||
Transmission Mode | 2K, 4K, 8K | ||||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||
MER | ≥40dB | ||||
RF frequency | 50~960MHz, 1KHz step | ||||
RF out | 6 (or 16) non-adjacent carriers output (maximum bandwidth 192MHz) | ||||
RF output level | -20dBm~+3dBm, 0.1dB stepping | ||||
Stream output | 1 ASI output as mirror of one of RF output carriers(Optional) 12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface, GE port | ||||
System function | Network management (WEB) | ||||
Chinese and English language | |||||
Ethernet software upgrade | |||||
Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm | |||
Environment | 0~45℃(work)；-20~80℃（Storage） | ||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||
